Moto X Water Damage

My friend dropped her Moto X into the deep end of a pool without noticing. It remained there for roughly 5 minutes before it was retrieved. Instantly it was put in rice for 16 hours but afterwards it wasnt working correctly and remained stuck in a bootloop. At that point it was taken apart and cleaned using alcohol and left to dry. It was no longer working. A few days later I tried to change the battery but it didnt help as the device just stayed off or in a bootloop depending which battery I connected. I left the Moto X open for another week to dry out completely with all of the original parts assembled. Today I plug it in and to my surprise it turns on and works as normal, but every time I unplug it, it would turn off. This happened around 3 times and then I decided to leave it on the charger to let it reach 100. In a few minutes the battery went from 56% to 100% and then it said fully charged. After some heating up and rebooting, it just started working normally. So if your Moto X is heavily water damaged (water has been forced inside by pressure), open it and just let it dry for a week and you should be good to go. The nanocoating seems to have worked out well in this case.

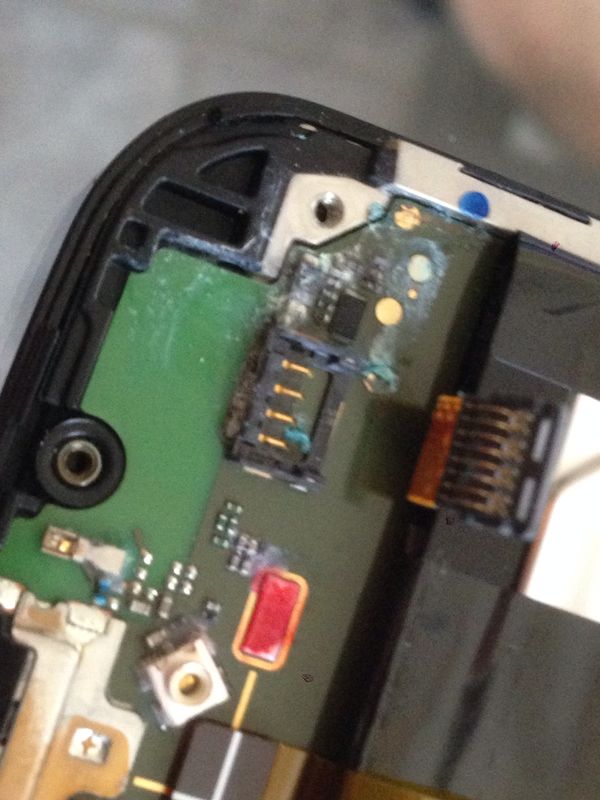

Internal Rust
Internal Rust

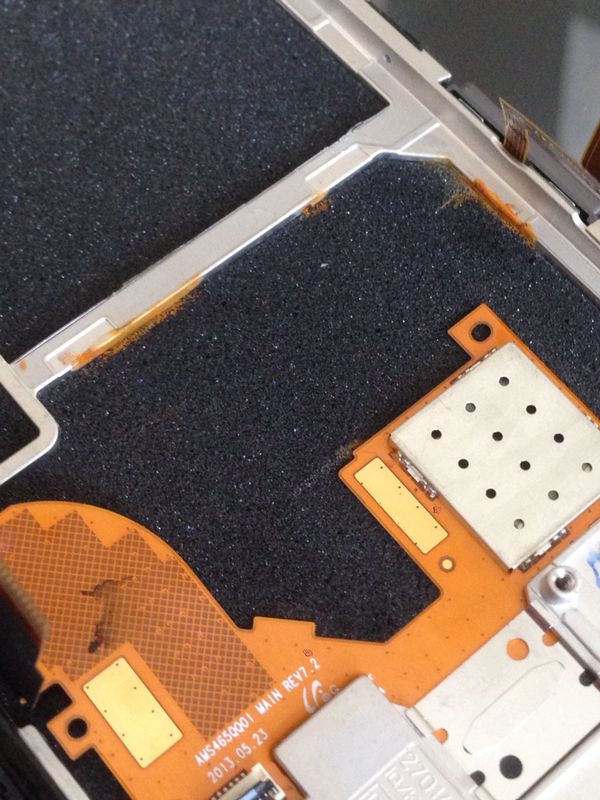

Internal Water Damage
Internal Water Damage

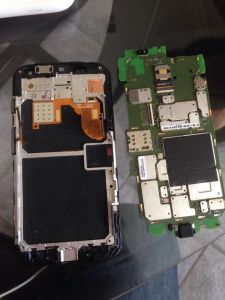

Between the screen and main board
Between the screen and main board

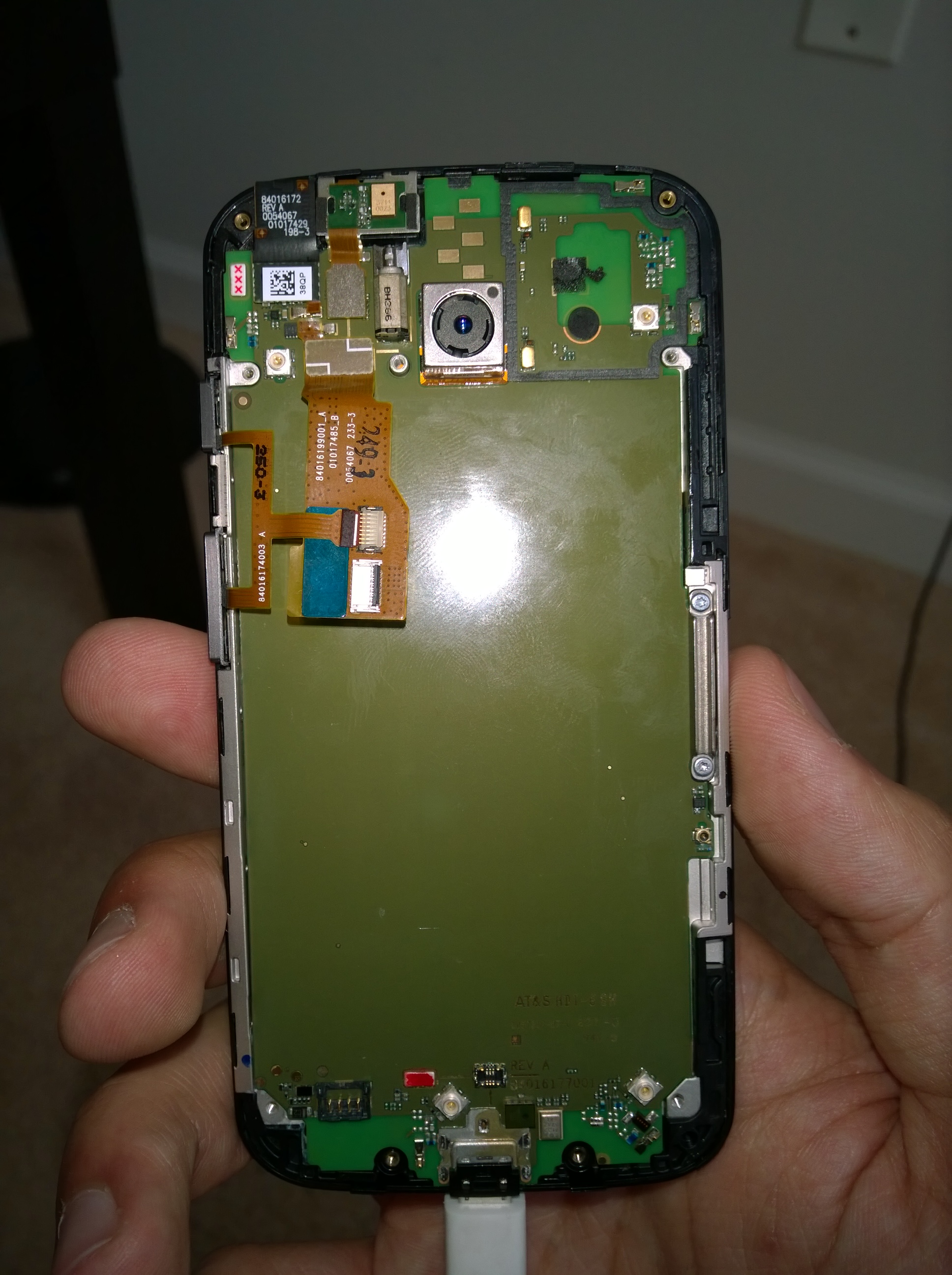

The Main board under the battery
The Main board under the battery

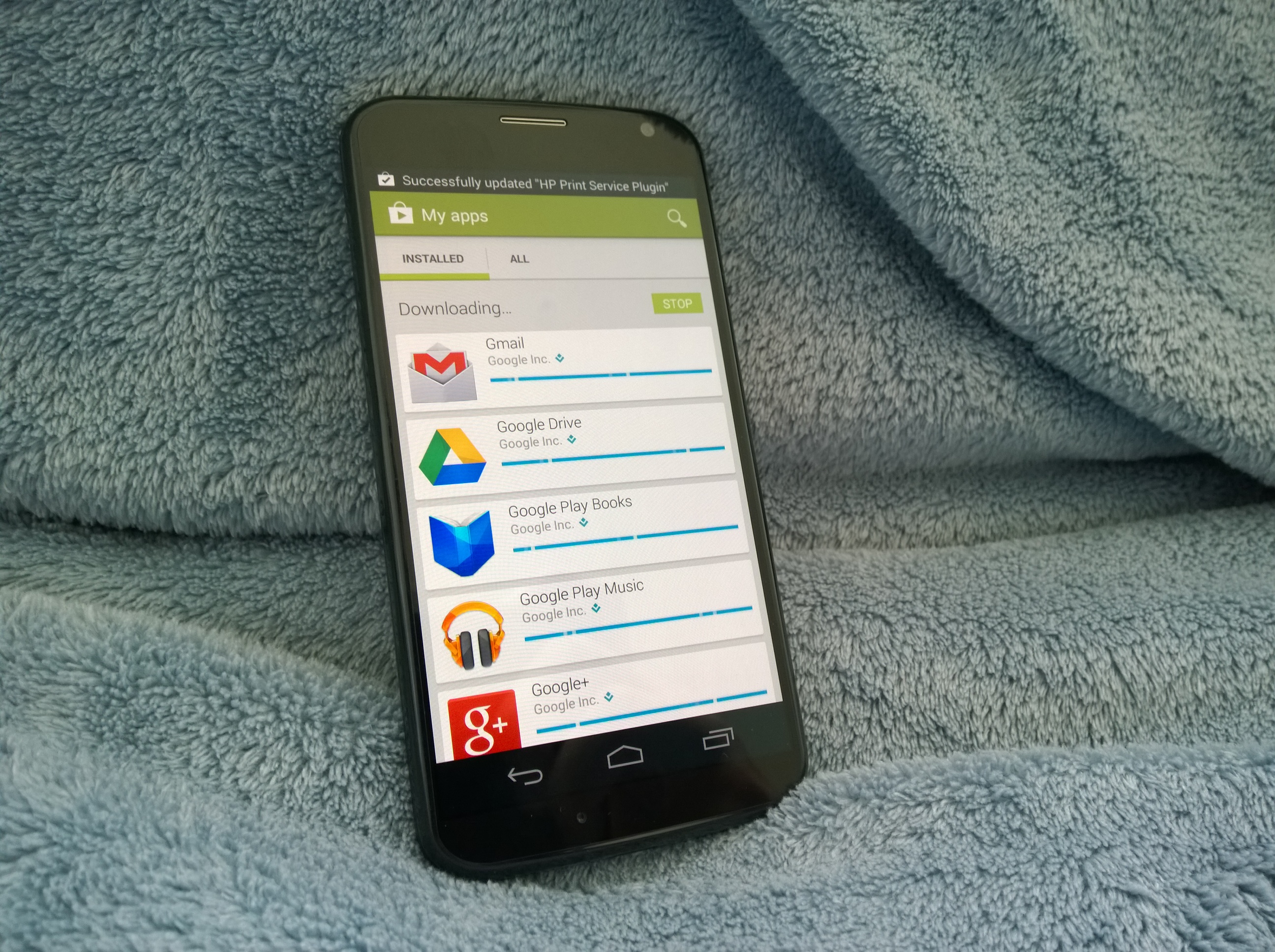

Finally Working
Finally Working
